Waste & the Reactor
Human waste never enters a mixed-waste plant in this design: it is sorted at the toilet, before it ever leaves the room. Each of a building’s 144 toilets is a bidet that catches urine at the front of the bowl, with no water, and sends solids, with the bidet’s washing water and a small vacuum flush, out the back. At the flush a valve sends anything the bowl cannot sort to the reactor instead. Recyclables go back to the businesses that supplied them; food scraps are picked up weekly from every kitchenette, and restaurants, cafés and delis send theirs too, all to the permaculture farms, where they feed the insect and worm beds and the livestock, alongside the animals’ own waste and compost. None of it touches the reactor.

Each stream has its own treatment. Urine rises to the plant in the utility storey, where the fuel cell’s heat pasteurises it, activated carbon removes any traces of medicine, and it is split into five outputs: three dry fertilizers, clean water and table salt. Solids drain down to a sealed tank at the foot of the building, are heated and pressed, and are turned into carbon black; of human waste, only urine becomes fertilizer. Medicines are kept out at the source: pharmacies send each person’s prescriptions weekly, in packets, so no large bottles are ever stored, and the pharmacy’s database alerts that person’s toilet and urine line before the medicine arrives. Only the small unsorted stream goes to the reactor, ground at the fixture into a pumpable slurry, and during an outbreak alert, everything does.

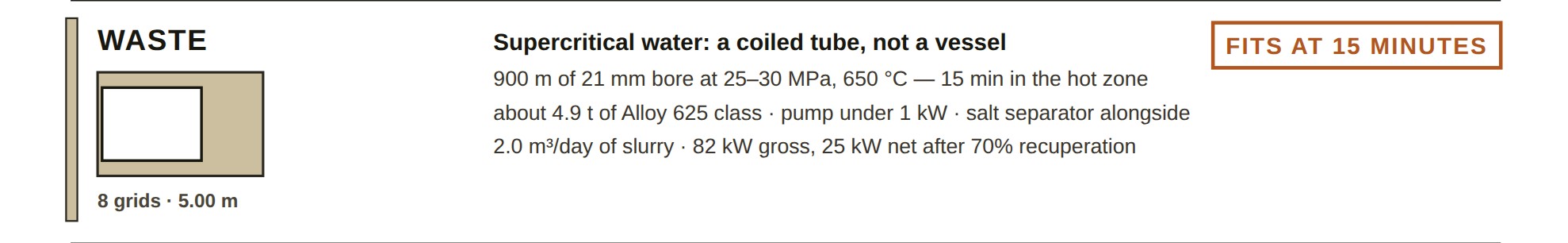

The reactor runs supercritical water oxidation — not gasification, not pyrolysis, and not incineration. Pushed past water’s critical point (374°C, 22.1 MPa), water becomes both solvent and reactant at once. With oxygen from a small concentrator in the utility storey, organic matter burns in the water itself to clean water, carbon dioxide and a little salt. No pathogen or medicine survives it, and nothing is left to become fuel: waste feeds the food chain, never the fuel cell. The carbon dioxide joins the fuel cell’s capture line, the water returns to the water plant, and the salt is drawn off and dried for industry.
The second stage, at the district works
The district works takes what no building, maker or living system can use. Plastic too worn to be recycled the usual way is gasified there into a methane-rich gas, which is made first into new plastic. Methane pyrolysis splits the rest into hydrogen for the chemical businesses and solid carbon, which goes to the farms as biochar first and then into building materials. Hazardous waste from businesses is destroyed there in a larger oxidation reactor. How the workshops handle their own waste is set out in Industrial Waste in the Mirrored Zone.
The path of every stream from the home is set out in The Recycling Architecture of the Community.
What the urine carries
Kept apart at the toilet, urine is the richest stream the community has. It carries about 88% of the nitrogen a person excretes, about two-thirds of the phosphorus, most of the potassium and nearly all the salt, in about 1.5 litres a day. For a community that is about 139 cubic metres a day, and some 369 tonnes of nitrogen and 34 tonnes of phosphorus a year: fertilizer worth about $8 a person a year at early-2026 prices, saving the 3.7 to 4.6 gigawatt-hours a year it would take to make the same nitrogen synthetically.
- Pasteurised at the building. Pasteurising urine with the fuel cell’s heat costs about 0.03 to 0.11 kWh a person a day. Sent through the reactor instead, it would cost several times that and carry most of the reactor’s salt, which is why only the divert stream goes to the reactor.
- Lawful as fertilizer. Pasteurised urine is a lawful fertilizer in the United States, registered in Vermont and Massachusetts; on produce eaten raw it must be treated to the federal biosolids standard.
- A health instrument, by choice. Because every void is kept apart, the toilet can read a person’s daily salt, protein intake, hydration, and kidney, diabetes and infection markers. The data belong to the person.
From the study What Comes Out Can Feed (October 8, 2026). It also proposes piloting duckweed or algae grown on urine as fish feed; feeding insect larvae raised on feces to fish is not lawful today and remains a research line under Bureau 13.
Where the design has a real, acknowledged hole
Getting the slurry into the reactor at 300 bar, with solids still suspended in the stream, needs a pump that does not currently exist as a catalogue product. High-pressure pumps built for clean fluids run at ten times this flow; pumps built for abrasive solids top out well below 300 bar. One manufacturer’s unit meets both specs, but its smallest size is 24 times larger than what this reactor needs. The fallback is a custom-built pump — priced at $275,000 with a 39-week lead time — and that price is itself explicitly labeled a guess, extrapolated from similar custom equipment rather than quoted by anyone who’s built this part. A second, related gap sits on the outlet side: no valve exists rated to survive 650°C, 300 bar, and precipitating salt all at once, so the design instead quenches and lets the stream down cold, in stages, running parallel trains so one can be serviced without stopping the reactor.
Governed by Bureau 23.
